樹脂塞孔與綠油塞孔的區別

二維碼 18

發表時間：2025-08-28 08:57作者：上海歐贊自動化設備有限公司來源：上海歐贊自動化設備有限公司

樹脂塞孔與綠油塞孔的區別

工藝原理
- 綠油塞孔：采用綠油（阻焊油墨）對PCB內層HDI的埋孔進行填充，固化后完成塞孔。
- 樹脂塞孔：使用樹脂將內層HDI的埋孔塞住，之后進行壓合等后續工序。
工藝效果
- 綠油塞孔：固化后會收縮，容易出現孔內吹氣問題，難以滿足高飽滿度要求。
- 樹脂塞孔：解決了綠油塞孔的弊端，平衡了壓合的介質層厚度控制與內層HDI埋孔填膠設計之間的矛盾，在飽滿度、塞孔質量等方面更具優勢。
工藝流程與成本
- 綠油塞孔：流程較為簡單。
- 樹脂塞孔：流程相對復雜，成本較高。

樹脂塞孔工程的制作要求

制程順序：包括鉆孔、電鍍、塞孔、烘烤、研磨。鉆孔后將孔鍍通，接著塞樹脂烘烤，之后研磨磨平，因磨平后的樹脂不含銅，需再鍍一層銅變成PAD，且這些制程在原本PCB鉆孔制程前進行，先處理好要塞孔的孔，再鉆其他孔，按正常制程繼續。
飽滿度控制：控制內層HDI塞孔的飽滿度是預防爆板的必要條件；若在線路以后進行塞孔，要控制好塞孔到壓合之間的時間和板面清潔度。
樹脂突起控制：控制好樹脂的打磨和壓平，橫豎各磨板一遍，確保板面樹脂磨干凈，局部沒磨干凈的可手工打磨修理干凈；磨板后樹脂凹陷不能大于0.075mm。
電鍍要求：根據客戶銅厚要求進行電鍍，電鍍后再進行切片確認樹脂塞孔凹陷度。

精密PCB電路板樹脂塞孔研磨步驟

文檔中未詳細闡述具體研磨步驟，僅提及研磨是在塞孔、烘烤之后，將樹脂磨平，且磨板時橫豎各磨一遍，確保板面樹脂磨干凈，局部沒磨干凈的可手工打磨修理干凈，同時要控制磨板后樹脂凹陷不能大于0.075mm 。

樹脂塞孔的預防改善措施

針對孔口氣泡
- 選用合適的塞孔油墨，控制油墨的存放條件和保質期。
- 規范的檢查流程，避免孔口有空洞出現，依靠過硬的塞孔技術和良好的絲印條件來提高塞孔的良率。
針對塞孔不飽滿：同上述控制內層HDI塞孔飽滿度的措施，控制好塞孔到壓合的時間和板面清潔度等。
針對樹脂與銅分層
- 選擇合適的樹脂，尤其是材料Tg和膨脹系數的選擇，合適的生產流程以及除膠參數，避免焊盤與樹脂受熱后脫離。
- 孔表面的銅厚厚度大于15um微米時，可極大改善樹脂與銅分層的問題。

樹脂塞孔常見的質量問題及其改進方法

常見問題
- 孔口氣泡
- 塞孔不飽滿
- 樹脂與銅分層
改進方法：同上述預防改善措施內容。

PCB樹脂塞孔的定義

PCB樹脂塞孔的制程包括鉆孔、電鍍、塞孔、烘烤、研磨。鉆孔后將孔鍍通，接著塞樹脂烘烤，之后研磨磨平，磨平后的樹脂不含銅，需再鍍一層銅變成PAD，這些制程在原本PCB鉆孔制程前進行，先處理好要塞孔的孔，再鉆其他孔，按正常制程繼續。采用該工藝，PCB板表面無凹痕，孔可導通且不影響焊接，在高多層、厚度較大的產品上備受青睞，但因樹脂特性，制作需克服諸多困難以保證質量。

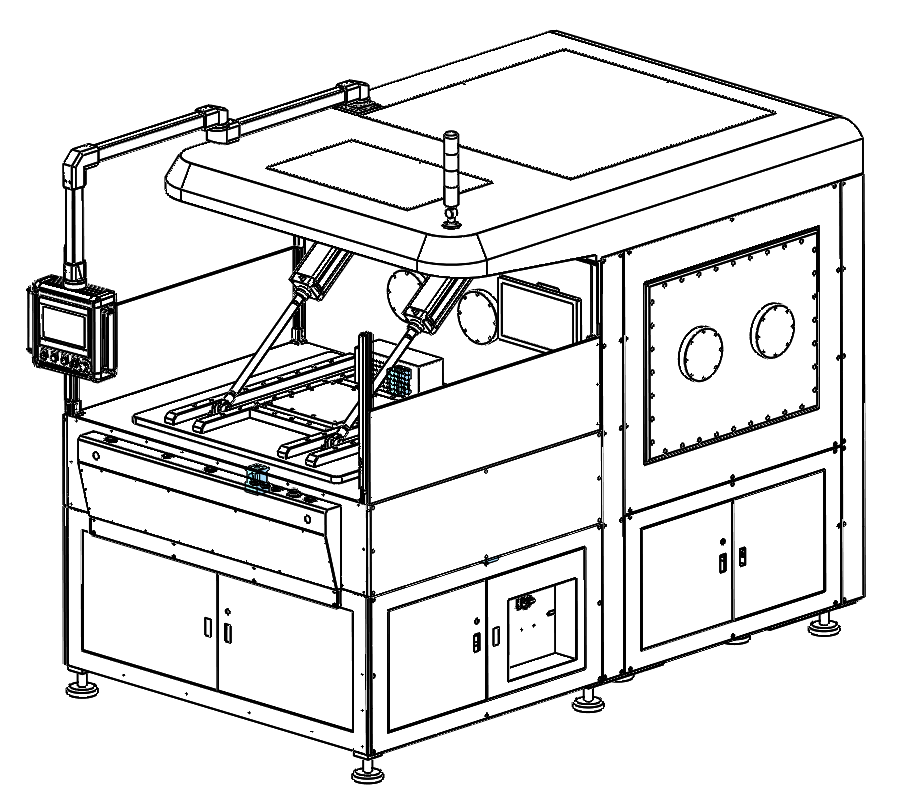

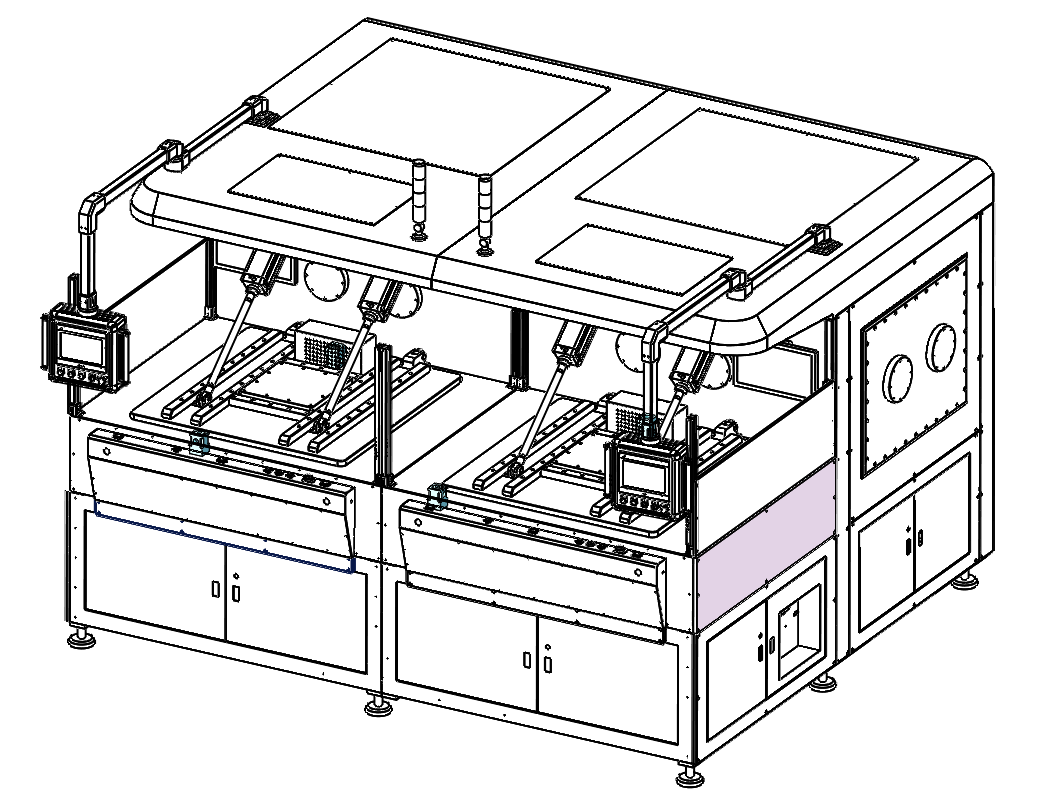

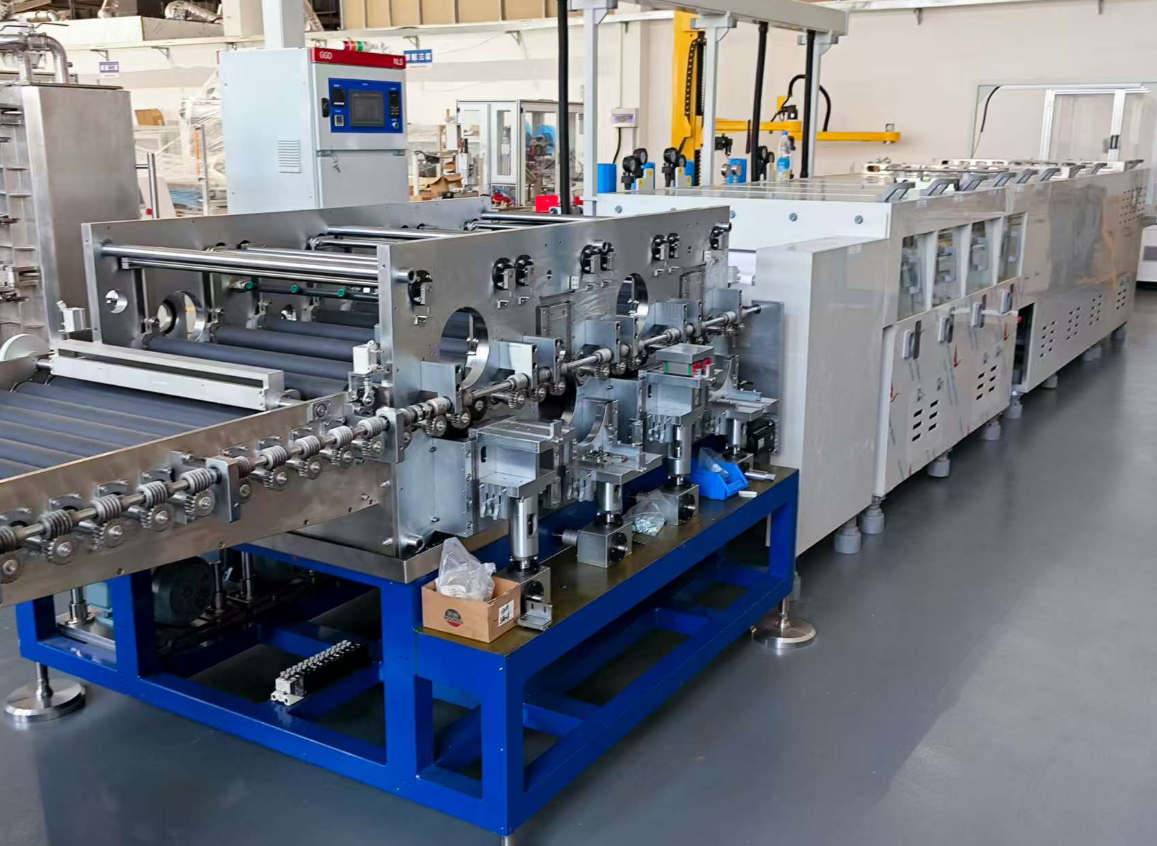

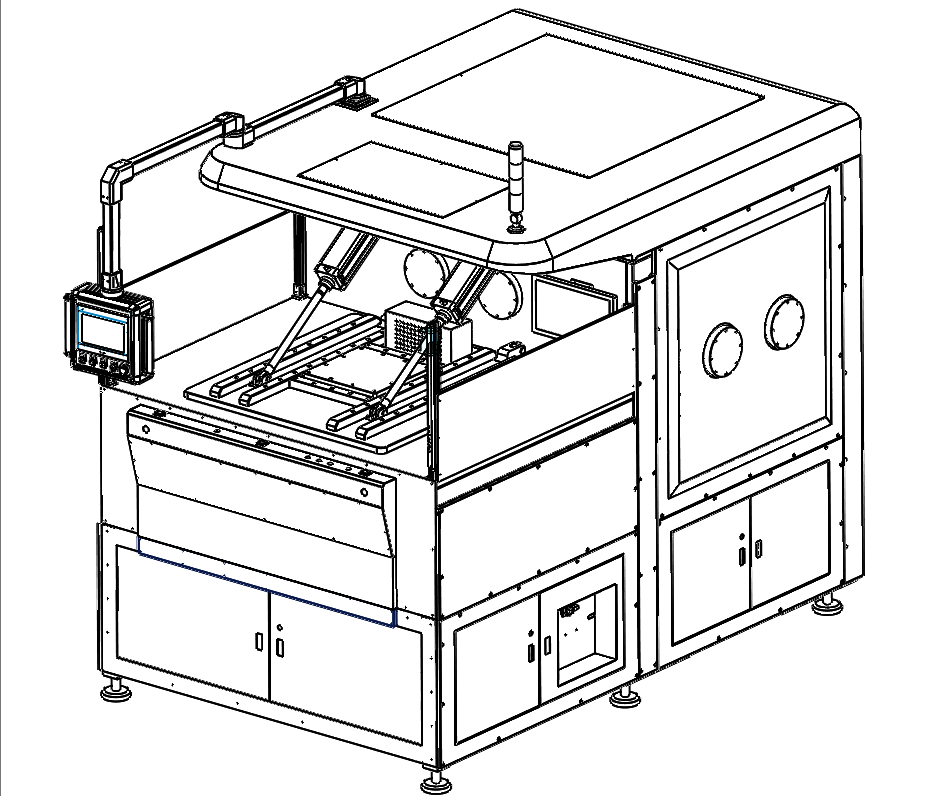

PCB加工中樹脂塞孔工藝在PCB研磨領域，憑借其深厚的行業經驗和持續的創新，形成了獨特的主打技術。公司專注于提供線路板研磨、塞孔的全方位解決方案，并已成功申請20余項專利，以**的生產技術服務滿足客戶的需求。這些主打技術不僅提升了公司的市場競爭力，更推動了整個PCB行業的發展。公司擁有一支專業的非標真空設備研發團隊。針對當前真空塞孔設備效率不高的問題，我們專注于臺面?zhèn)鬏斚到y(tǒng)的研發與改進，旨在提升設備效率。經過不懈努力，且其效率相較于現有設備提高了15-20%。設備的穩定性和效率均贏得了客戶的廣泛認可。在過去的三年里，我們不斷拓展市場，目前已與多家知名企業達成合作，包括方正、滬士、TTM、景旺、中富、奧士康、KB集團、崇達和勝宏等。

隨著電子產品向輕、小、薄發展，高精度、高密度、高難度PCB板需求增多，為滿足行業發展，PCB制造商不斷創新工藝，樹脂塞孔工藝應運而生。它解決了綠油塞孔或壓合填樹脂不能解決的問題，在盲埋孔、HDI、厚銅等產品上普遍應用，涉及通訊、航空、電源、網絡等行業。該工藝在PCB里應用越來越普遍，尤其在高層數、高精密PCB多層電路板中，適應了裝配元器件微小型化發展，縮小PCB設計尺寸，提高了HDI、厚銅、背板等產品的可靠性和制作工藝能力。
