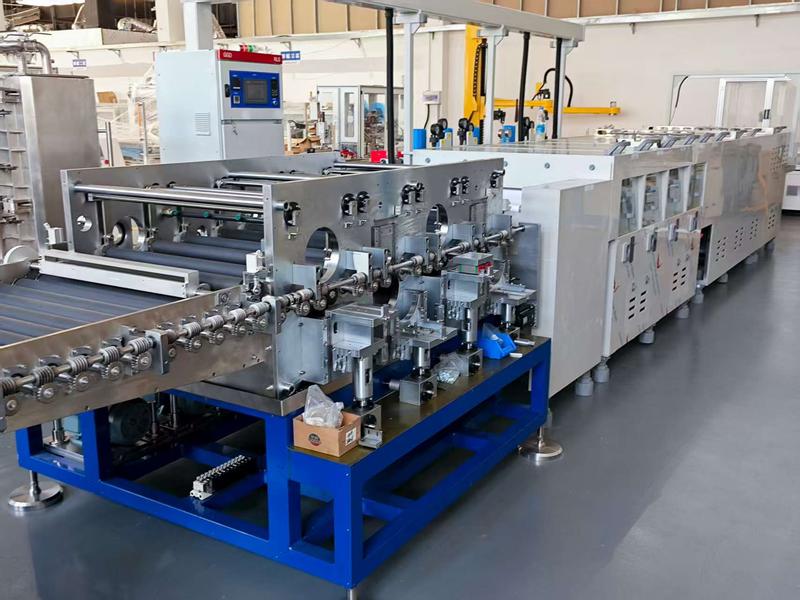

陶瓷基板的研磨機的原理是什么Multi functional vacuum hole plug machine manufacturer

陶瓷基板研磨機的原理主要基于機械摩擦與材料去除的協同作用，通過精密控制的研磨工具與陶瓷基板表面的相對運動，實現高精度、低損傷的表面加工。其核心原理可分解為以下關鍵環節：

1. 研磨介質與作用力

• 研磨工具：通常采用金剛石、碳化硅（SiC）或氧化鋁（Al?O?）等超硬材料制成的磨盤或磨粒，其硬度遠高于陶瓷基板（如氧化鋁、氮化鋁、氧化鋯等），確保有效去除材料。

• 作用力類型：

  • 法向力：垂直于基板表面的壓力，使磨粒嵌入基板表面，產生塑性變形或脆性斷裂。

  • 切向力：平行于表面的摩擦力，驅動磨粒滑動或滾動，剝離破碎的材料層。




2. 材料去除機制

陶瓷基板的研磨過程結合了脆性斷裂與塑性流動兩種機制，具體取決于材料特性、研磨參數及磨粒尺寸：

• 脆性斷裂：陶瓷為脆性材料，當磨粒壓入表面時，裂紋在基板內部擴展并交匯，導致小塊材料剝落（微破碎）。此機制在粗研磨階段占主導。

• 塑性流動：通過優化研磨參數（如低壓力、小磨粒、高轉速），可使陶瓷表面產生局部塑性變形，形成光滑層（類似金屬的切削加工）。此機制在精研磨階段更顯著，可減少表面損傷。

3. 運動方式與軌跡控制

研磨機通過精確控制研磨工具與基板的相對運動，實現均勻材料去除：

• 單軸旋轉研磨：磨盤繞固定軸旋轉，基板固定或做行星運動，適用于平面研磨。

• 雙軸聯動研磨：磨盤與基板同時旋轉（如自旋轉研磨），通過調整轉速比優化表面均勻性。

• 軌跡規劃：通過數控系統控制磨盤或基板的擺動、振動或往復運動，避免局部過度研磨，提升表面平整度。

4. 冷卻與潤滑系統

• 冷卻液作用：

  • 散熱：研磨產生大量熱量，冷卻液（如水基或油基溶液）可防止基板熱變形或磨粒鈍化。

  • 排屑：攜帶研磨碎屑離開加工區，避免二次劃傷。

  • 潤滑：減少磨粒與基板間的摩擦，降低表面粗糙度。




• 噴淋方式：通過噴嘴均勻噴射冷卻液，或采用浸沒式研磨（基板完全浸入冷卻液中）。

5. 工藝參數優化

• 研磨壓力：壓力過大易導致裂紋擴展，壓力過小則效率低下，需根據材料硬度調整。

• 磨粒尺寸：粗磨用大顆粒（如#200-#400），精磨用小顆粒（如#1000以上），逐步降低表面粗糙度。

• 研磨速度：高轉速可提高效率，但需平衡離心力對加工穩定性的影響。

• 加工時間：通過在線檢測（如激光干涉儀）實時監控表面質量，避免過度研磨。

6. 表面質量提升技術

• 化學機械拋光（CMP）：在研磨液中添加化學試劑（如酸性或堿性溶液），通過化學反應軟化陶瓷表面，結合機械作用實現超光滑加工（Ra<0.1μm）。

• 超聲波輔助研磨：利用高頻振動使磨粒產生微沖擊，改善材料去除均勻性，尤其適用于難加工陶瓷。

應用場景

陶瓷基板研磨機廣泛應用于電子封裝、功率器件、LED照明等領域，用于制備高平整度、低粗糙度的基板表面，以滿足后續金屬化、芯片貼裝等工藝要求。例如，氮化鋁（AlN）基板需通過研磨去除燒結缺陷，確保高導熱性與絕緣性。

通過上述原理的協同作用，陶瓷基板研磨機能夠?qū)崿F(xiàn)納米級表面粗糙度控制，同時保持基板的機械強度與電學性能，是高端陶瓷電子器件制造的關鍵設備。
